From the R-R collection of MagneticField

Technical Details

Brand: Heathkit

Model:AD-22

Category:Vintage

Application:Consumer

Electronics:Tube

Equalization:NAB

Country of Manufacture:USA

Release dates:1962 -

Tracks:1/4 Rec/PB

Speeds: 3 3/4, 7 1/2

Max Reel Size("): 7"

Number of heads: 3

Dimension: 12 x 15 x 8"

Head Composition: Permalloy

Head Configuration: Stereo

# Motors: 2

Voltage(s): 110-120v

Outputs: 1/4" Headphone

Frequency Response:40 - 15,000 Hz

Wow and Flutter:.3%

Signal-to-Noise Ratio:45 dB

Sound quality rating:5 / 10

Long-term reliability rating: 5/ 10

Weight: 43 Lbs.

Additional Details

Description

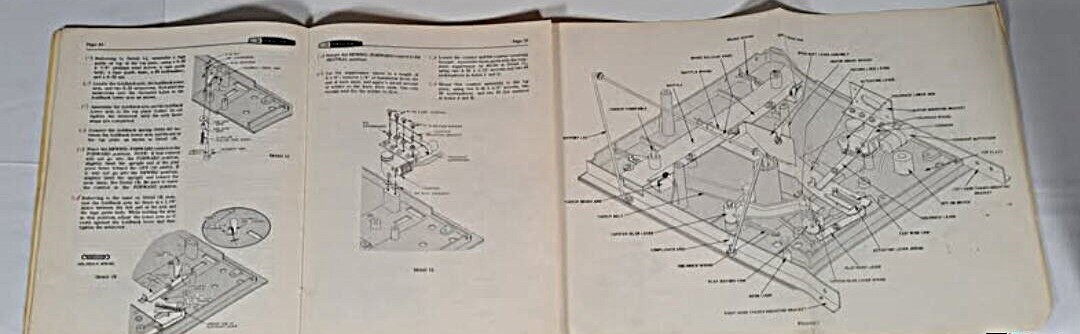

The Heathkit AD-22 was available in kit form (you get to build it) as was the case with all the products they sold.
Retailing for one 179.95 as a standalone or $209 with an amplifier and two speakers.
The transport was preassembled and would have been sourced from another manufacturer.
If anybody recognizes this version resembling another tape recorder, please let us know.
Where so many of the tube tape recorders were 2 track, this one is a 4 track.
